Lithium Battery Pack Testing Machine

Lithium Battery Pack Testing Machine

  • High Light

    Lithium Battery Pack Testing Machine

    ,

    Battery Pack Testing Machine 140cm

    ,

    Lithium BMS Testing Machine

  • Type
    Digital
  • Cross-border Parcel Weight
    150KG
  • Unit Weight
    150KG
  • Product Volume
    110cm * 80cm * 140cm
  • After Sale
    Provides Online And Video Services
  • Core Component Warranty
    1 Year
  • Place of Origin
    Shenzhen,China
  • Brand Name
    Cheebo
  • Model Number
    CBCT-100/120
  • Minimum Order Quantity
    1 set
  • Packaging Details
    Packed in wooden case
  • Delivery Time
    1 week
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    10 sets per month

Lithium Battery Pack Testing Machine

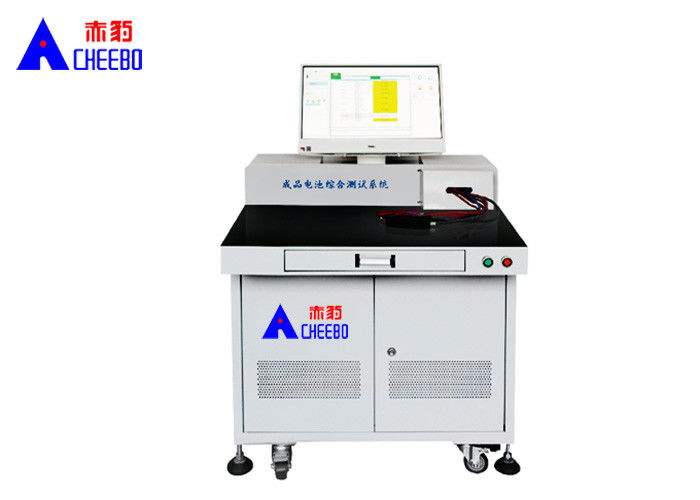

CBCT-100/120 battery comprehensive tester

Equipment characteristics

  • A fast and accurate test of finished battery performance equipment.
  • Seven test items (open circuit voltage, AC resistance, discharge test, discharge over current test, short circuit protection test, charge test, charge protection test).
  • Maximum charging current (15A), overdischarge current (120A). (Can be customized according to requirements)
  • Maximum test voltage 110V. (Can be customized according to requirements)
  • Programmable control of test items, support a host computer software to control a variety of devices.
  • Support serial port, network and host computer communication, support charging activation function.

Lithium Battery Pack Testing Machine 0

Electrical function index


Maximum range of voltage measurement 105V
Voltage measurement accuracy 1%
Maximum range of discharge current 200A(Duration less than 60 seconds)
Discharge current measurement accuracy 10%
Maximum charging voltage 110V
Maximum range of charging current 16A
Charging current measurement accuracy 5%
Maximum range of AC internal resistance
Measurement accuracy of AC internal resistance 0.5mΩ
Maximum dc internal resistance range
Measurement accuracy of DC internal resistance 10%
Short circuit resistance 0.1Ω
Maximum short circuit test time 100ms
The reading and writing function of barcode and two-dimensional code is optional
Input voltage: AC220V, maximum power 2000W

Widely used in automotive electronics, aerospace, Marine, solar energy storage, electric bicycle, electric motorcycle, back power battery communication power supply and other power battery production and scientific research test.

Lithium Battery Pack Testing Machine 1

Lithium Battery Pack Testing Machine 2

Partial partners


Lithium Battery Pack Testing Machine 3

Certificate of honor


Lithium Battery Pack Testing Machine 4

Exhibition activity


Lithium Battery Pack Testing Machine 5

Cooperation process


Lithium Battery Pack Testing Machine 6

Packing and transportation


Lithium Battery Pack Testing Machine 7

Q&A


1. Who are We?

We are Shenzhen cheebo Technology Co., LTD., headquartered in Shenzhen, China, is a professional engaged in resistance welding technology and automatic welding equipment research and development, production, sales, service as one of the high-tech enterprises. The company has a strong level of innovation and technology and product development ability, since the establishment of independent research and development of dozens of products, best-selling domestic and foreign markets. The company has a total of 31-50 employees.

2. How can we ensure quality?

Pre-production of samples prior to mass production, final inspection and video recording before delivery.

3. What can you buy from us?

Lithium battery automatic production line, battery spot welding machine, pen pad spot welding machine, battery sorter, battery positive electrode paste insulator paper, battery comprehensive tester, battery CCD polarity detection equipment

4. Why should you buy from us instead of other suppliers?

We have a strong technology research and development team, has more than 20 years of industry research and development, production and service experience. Adopt modular design, customer customized production, to meet the different needs of customers, to provide customers with high-quality, safe, environmental protection, high efficiency, energy saving products and services. The company has a variety of specifications and models of mechanical equipment, a variety of series to choose from.
